Description
Product advantages
1.High ISO/ FEM Classification:M6/3m for capacities up to 500 kg and 2 speeds (dual speed)
2.Extremely Strong And Wear-Resistant Nickel-Plated TOYO Load Chain
The chain reaches the international G80 grade, and can also be customized with a higher G100 grade. It adopts carbon black technology and has strong anti-corrosion effect and strong wear resistance.
3.Enhanced safety and positioning accuracy with the pioneering inverter technology or with 24V control control
4.Cooling wind motor environmentally friendly design aluminum die-casting integrated molding
Features
Capacity ranging 1t-5t
Net weight: 54-129 kg
Standard Lifting Height 3 m
Low-maintenance and easy-operation
Frequency inverter for dual lifting and moving speeds for an exact positioning of the load
SIEMENS Contactor control for single speed
Cooling fan motor
Electromagnetic brake: improved performance and safety
Carbon friction clutch: an overload protection which interrupts the transmission power from the motor in case the hoist is overloaded, protecting both you and the hoist
Upper-Lower Limit Switch: turns the motor off when the highest or lowest points have been reached
Newly developed load sheave: smooth and low-noise operation
Gearbox: Helical gears offer a smooth and quiet operation
Ergonomic and user-friendly push button control (Protection Class IP 65)
Thermal motor protector
Technical Parameters

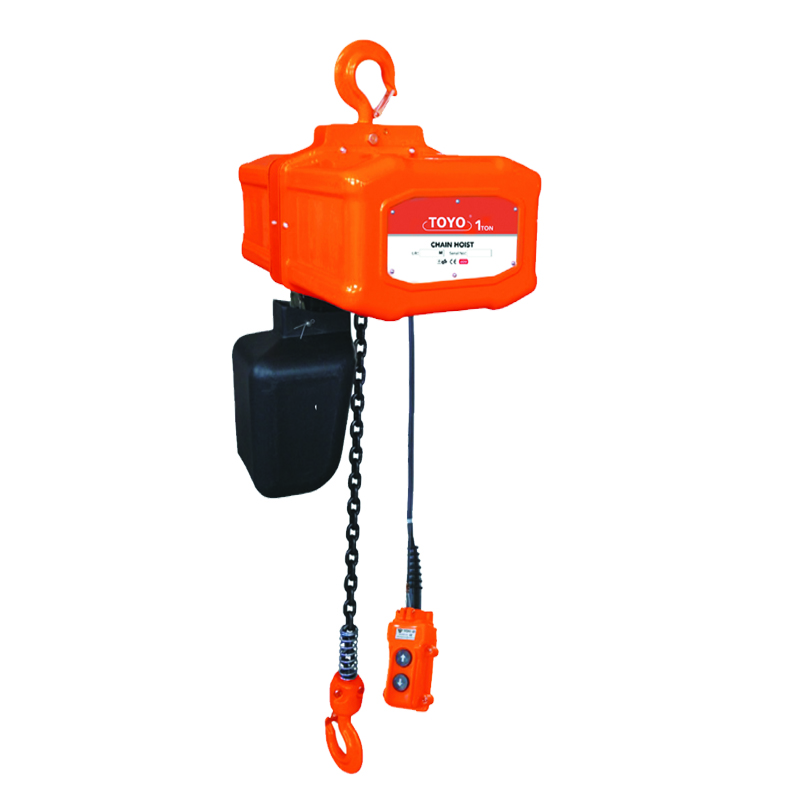

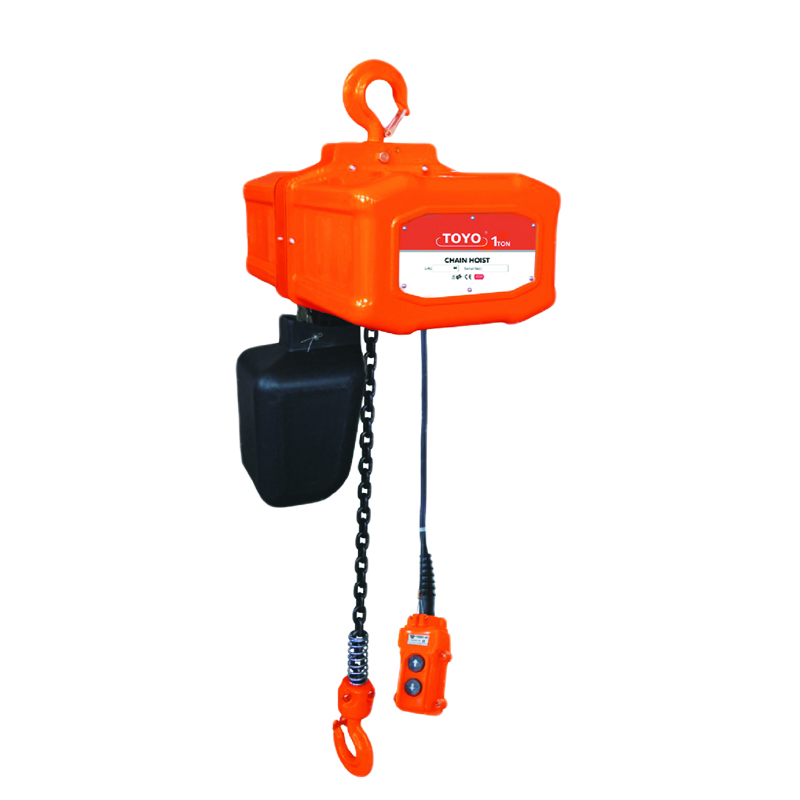

HHBT-Single Speed With Hook Suspension
HHBT- Dual Speed With Hook Suspension
